Tools solve problems in wood. Hand tools bought just to collect do not serve you well. But tools bought when you need them will serve many projects to come. Don’t hesitate to buy a good hand tool suitable to the task. The tools mentioned here actually stand a chance of being useful in the hands of some future woodworker a century from now.
Drawknife
I owned a drawknife for years without ever putting it to use. There were only two instances when I observed it being used in the hands of a professional. One was in a boat shop where planks along the sheer (the top of the sides where it meets the deck) were being finished off in the gentle curve that makes the profile of the hull. The other was watching Geoff Burke make a paddle that fine summer day. I have since learned that there are several styles and blade treatments for this tool.

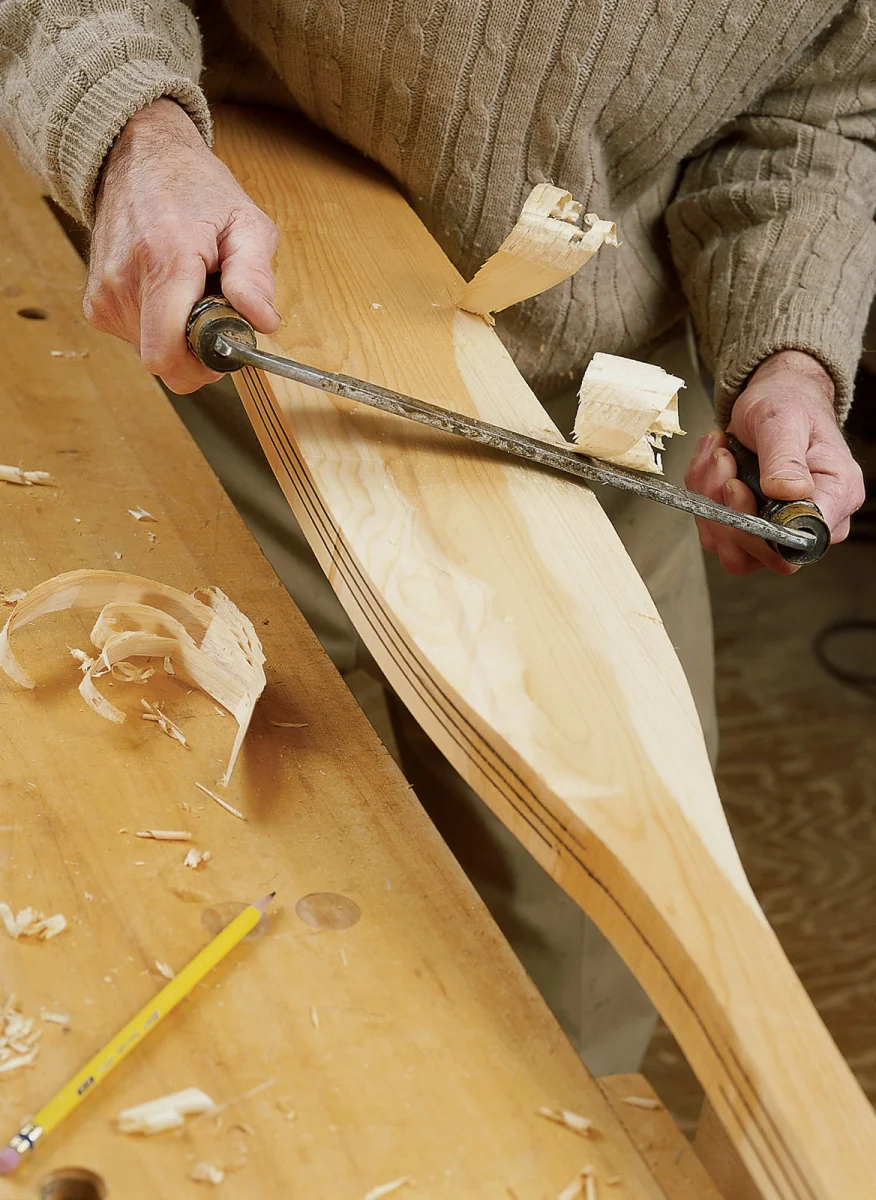

Drawknives are made in a variety of sizes for a variety of tasks. The largest drawknife is used for peeling bark from logs. Carvers’ drawknives are small. The one shown in this article is referred to as a carpenter’s drawknife and is 12″ long with a 7″-wide blade.
As is so often true, the critical point of this tool is the sharpness and angle of the blade. Hogging off rough chunks of wood is not light work. Check the angle of sharpening before use. The tools often are made with an angle of 25° to 30°, which is steeper than necessary and will make heavy going of your work. A finer pitch of 15° to 20° will serve well in the straight-grained softwood of a paddle.
Drawknives are used to bevel up for straight cuts. Turned over they will follow contours for shaping. Leonard Lee, in his book “The Complete Guide to Sharpening” (Taunton Press), points to an alternative:

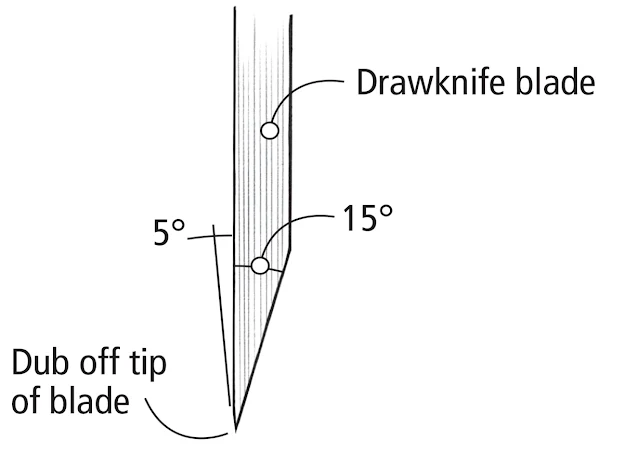

“If you put a 15° basic bevel on a drawknife and dub [a slight bevel on the flat side] from 2° to 5° off the face of the knife, you will find that it is much more maneuverable.” (See the drawing of a modified drawknife at right.)
Old drawknives of good quality can still be found at considerable savings, and they can give you great satisfaction for having rescued a very useful tool.
Spokeshave
This is a short-soled plane used for smoothing hollows that typically appear when transitioning from one shape to another.
Modern versions of the spokeshave have a metal body holding the blade at an angle to the sole similar to a plane. They come with a flat sole like a conventional plane for flat work or outside curves, with a convexly curved sole for shaving inside curves, or with a concave sole.

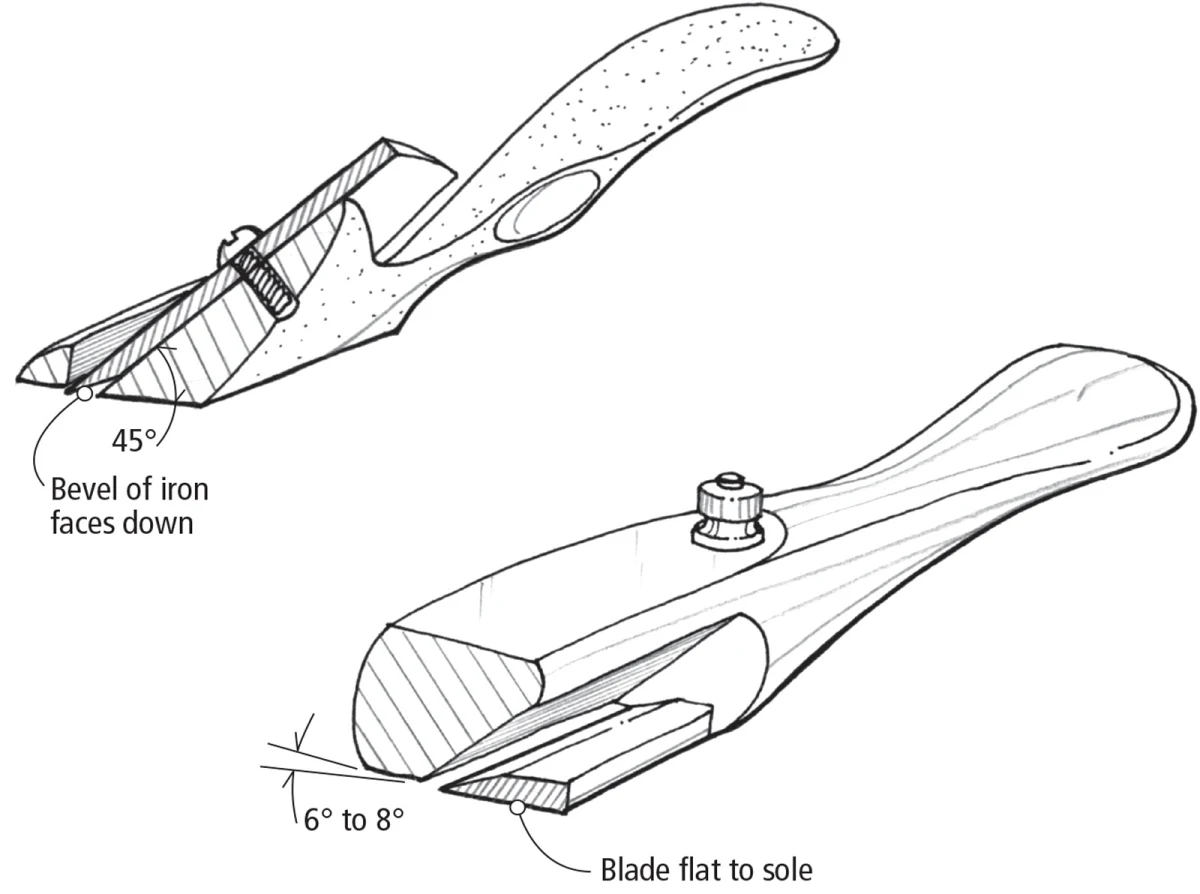

The traditional spokeshave had a wood body and the blade lying flat to the sole. They are sometimes called razor-type shaves, identifying the shape of the blade, which looks like a traditional straight razor. The change in blade angle makes the modern version less effective for many cutting operations. The flat position of the razor-type blade makes it easy to work with.
The traditional wood-bodied shaves have a 6° to 8° bevel in the sole ahead of the cutting edge. This allows for making hollows, while the blade slices into the wood at no angle at all.
Block Plane
For years, a block plane was a familiar tool tucked into my nail apron as a trim carpenter. It was used for almost any planning job, not just the smoothing of end grain that tradition has made its appointed task. To this day, I will reach for a block plane more often than a bench plane to smooth wood.
Fortunately, a good version of this plane, the Stanley No. 60 1⁄2, is readily available. You will find this version in most tool catalogs and may even find it in the hardware section of a home-supply store.
Be aware that there are two versions of the block plane – a regular and a low-angle. The low-angle Stanley No. 60 1⁄2 is 1⁄4” narrower than the standard version. It is this low-angle, narrower block plane that fits my hand best.
In all these tools, their effectiveness depends on being sharp. That should be job one before beginning your paddle.
Finger Marking Gauge
To the list of these tools – drawknife, spokeshave, and block plane – I have added a fourth “tool:” the finger marking gauge. This is simply a pencil in your hand.
I learned this skill from my father so early in my woodworking career that I thought everyone knew how to do it. That is until I started teaching woodworking. I would use this technique for gauging a line along a board and find that my students would do a double-take to see where the straight line came from.
The photo below shows this better than a description could. The middle or ring finger serves as a stop to determine the width of the space to be drawn. To find the center of a board, as in the paddle blank, simply gauge a line from both sides approximately half the board’s width. Seeing now how closely they meet in the center gives you an eye for the exact center to set the final holding position for your finger marking gauge. In applications where the space to the gauge line widens, you need to hold the pencil higher, using your ring finger instead of your middle finger as a stop.
